309 Stainless Steel Forged Fittings

Home 309 Stainless Steel Forged Fittings

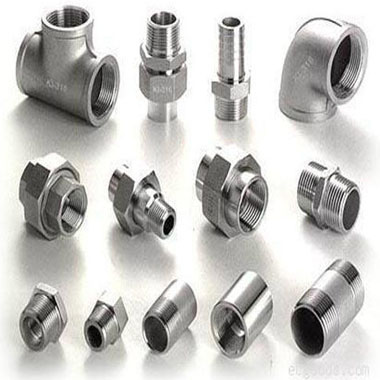

309 Stainless Steel Forged Fittings

Best Manufacturer & Supplier of ASTM A182 Stainless Steel 309 Forged Fitting, SS 309 Threaded Fittings, SS 309 Forged Pipe Elbow, 309 Stainless Steel Forged 90 Deg. Elbow, SS 309 Lateral Tee, SS UNS S30900 Forged Fitting, SS 309 Forged Socket Weld Fittings Supplier in Mumbai, India

ANSI B16.11, SS 309 Class 6000 Forged Fittings, Stainless Steel 309 Forged Hex Plug, ASME SA182 Stainless Steel 309 Threaded Forged Fittings, SS Werkstoff NR. 1.4833 Forged Fitting, SS 309 Forged Threaded Plug, 309 SS Pipe Nipple Stockholder

Aspirinox Alloys Inc is the one – stop solution to all your needs for Stainless Steel 309 Forged Fittings. These SS 309 Forged Fittings are available in a variety of shapes, sizes, grades and standards which can be customized and manufactured according to the requirement of the customer. They have high-pressure resistance, heat transfer capacity, high ductility and a longer life than any other locally available stainless steel fitting.



Stainless Steel 309 Socket Weld Fittings are those in which the pipes to be connected are fitted into a particular recessed area present in a valve, fitting or a pipe. They are more effective to fit in pipes that have smaller diameters. In this, the pipe and the fitting both are cut in a square.  Stainless Steel 309 Threaded Fittings are available in different threading sizes and are used for connections that need to be air or water tight.



SS 309 Forged Tees are T – shaped fitting on a small section of the pipe, that has a right-angled connection to the main pipe. Our SS 309 Forged Cross is used for transmission of flow in four directions. We manufacture both reducing and equal cross. A typical SS 309 Forged Nipple Fittings contains male threads on the either ends to join two pipes or fittings together. In order to ensure that the pipes can be conveniently detached and joints from the main system when the need for an emergency or need occurs, SS 309 Forged Unions are used. On the other hand, SS 309 Forged Elbows Fittings which are available in many angles apart from the standard 90 and 45 are designed in a way to reduce the pressure loss and ensure a seamless connection between pipelines at different angles.



To know more about our grade 309 stainless steel forged fittings and to get the best price, contact us today.

ASTM A182 Stainless Steel 309 Forged Elbow, SS 309 Forged Street Elbows, Stainless Steel 309 High Pressure Forged Fittings, SS 309 Threaded Hex Plug, Stainless Steel 309 Forged Union Dealer, SS 309 Forged Full Couplings Exporter in India

309 Stainless Steel Forged Fittings Specifications

Specifications for 309 Stainless Steel Forged Fittings. If any specification is not mentioned here, please use the contact button for quick quote.

Specifications ASTM A182 / ASME SA182
Standards ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8″NB TO 4″NB (Socketweld & Screwed-Threaded)
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socket Weld Fittings, Screwed-Threaded Fittings

Types of 309 Stainless Steel Forged Threaded Fittings

  • 309 Stainless Steel Forged Threaded Elbow
  • ASTM A182 SS 309 45 Degree Forged Threaded Elbow
  • 309 SS 90 Degree Forged Threaded Elbow
  • UNS S30900 Forged Threaded Fittings
  • WERKSTOFF NR. 1.4833 Forged Threaded Fittings
  • 309 SS Forged Threaded Equal Tee
  • SS 309 Forged Threaded Unequal Tee
  • 309 SS Forged Threaded Equal Cross
  • UNS S30900 Forged Threaded Unequal Cross
  • 309 SS Forged Threaded Half Couplings

  • 309 SS Forged Threaded Full Couplings
  • SS 309 Forged Threaded Reducing Couplings
  • 309 Stainless Steel Forged Threaded Cap
  • 309 SS Forged Threaded Reducing Insert
  • ASTM A182 SS 309 Forged Threaded Bushing
  • 309 SS Forged Threaded Pipe Nipples
  • UNS S30900 Forged Threaded Hex Nipples
  • 309 Stainless Steel Forged Threaded Plug
  • MSS SP-79 309 SS Forged Threaded Plug
  • ANSI B16.11 SS 309 Forged Threaded Unions

Stainless Steel 309 Forged Fittings Chemical Composition

Grade SS 309
C 0.20 max
Mn 2.00 max
Si 1.00 max
P 0.045 max
S 0.03 max
Cr 23.0 max
Ni 14.0 max
Fe 60.0 max

Mechanical Properties of ASTM A182 309 Stainless Steel Forged Fittings

Grade SS 309
Density 8.0 g/cm3
Melting Point 1455°C (2650°F)
Tensile Strength Psi – 89900 , MPa – 620
Yield Strength (0.2%Offset) Psi – 45000 , MPa – 310
Elongation 45 %

309 Stainless Steel Forged Fittings – Equivalent Grades

Grade SS 309
UNS No S30900
WERKSTOFF NR. 1.4833

Types of Stainless Steel 309 Forged Socket Weld Fittings

  • 309 Stainless Steel Forged Socket Weld Elbow
  • UNS S30900 Forged Socket Weld Fittings
  • WERKSTOFF NR. 1.4833 Forged Socket Weld Fittings
  • SS 309 Forged Socket Weld Equal Tee
  • 309 SS Forged Socket Weld Unequal Tee
  • ASTM A182 SS 309 Forged Socket Weld Equal Cross
  • 309 SS Forged Socket Weld Half Couplings
  • UNS S30900 Forged Socket Weld Full Couplings
  • SS 309 Forged Socket Weld Reducing Couplings
  • SS 309 Forged Socket Weld Lateral Tee
  • Stainless Steel 309 Socket Weld 90 Deg. Elbow

  • ASTM A182 SS 309 Forged Socket Weld Unequal Cross
  • 309 Stainless Steel Forged Socket Weld Cap
  • 309 SS Forged Socket Weld Reducing Insert
  • DIN 1.4833 Forged Socket Weld Reducing Insert
  • ANSI B16.11 SS 309 Forged Socket Weld Bushing
  • 309 SS Forged Socket Weld Pipe Nipples
  • SS 309 Forged Socket Weld Hex Nipples
  • 309 Stainless Steel Forged Socket Weld Plug
  • MSS SP-79 SS 309 Forged Socket Weld Plug
  • UNS S30900 Forged Socket Weld Unions
  • Stainless Steel 309 Socket Weld 45 Deg. Elbow

309 Stainless Steel Forged Fittings Updated Price List

Request the latest 309 Stainless Steel Forged Fittings List. Please click on the request a quote button or click here to request the updated price list and ready stock information along with your requirement. Aspirinox Alloys INC maintains a stock of all standard items and can export them at best price for 309 Stainless Steel Forged Fittings.

Stainless Steel 309 Forged Fittings Value Added Services

Material Testing:

  • Mechanical Testing Such as Tensile of Area
  • Hardness Test
  • Chemical Analysis – Spectro Analysis
  • Positive Material Identification – PMI Testing
  • Flattening Test
  • Micro and MacroTest
  • Pitting Resistance Test
  • Flaring Test
  • Intergranular Corrosion (IGC) Test

Documentation & Packaging:

  • Commercial Invoice including HS Code
  • Packing List including Complete Details
  • Certificate of Origin legalized
  • Material Traceability Records
  • Quality Assurance Plan (QAP)
  • Heat Treatment Charts
  • Material Test Certificates (MTC)
  • Guarantee Letter
  • NABL approved Laboratory Test Reports

Exporting 309 Stainless Steel Forged Fittings to Below Countries

Afghanistan, Albania, Andorra, Austria, Bahrain, Bangladesh, Bhutan, Brunei, Belarus, Belgium, Bulgaria, Cambodia, China, Cyprus, Croatia, Czech Republic, Denmark, Estonia, Egypt, Finland, France, Germany, Greece, Georgia, Hungary, Iceland, Ireland, Italy, Indonesia, Iran, Iraq, Israel, Japan, Jordan, Kazakhstan, Kuwait, Kyrgyzstan, Lebanon, Latvia, Latin America, Liechtenstein, Lithuania, Luxembourg, Malta, Moldova, Monaco, Malaysia, Maldives, Mongolia, Myanmar (Burma), Nepal, North Korea, Netherlands, Norway, Oman, Poland, Portugal, Pakistan, Palestine, Philippines, Qatar, Russia, Romania, Russia, San Marino, Serbia and Montenegro, Slovakia, Slovenia, Spain, Sweden, Switzerland, Saudi Arabia, Singapore, South Korea, South Africa, Sri Lanka, Syria, Taiwan, Tanzania, Tajikistan, Thailand, Turkey, Turkmenistan, Ukraine, United Kingdom, United Arab Emirates (UAE), Uzbekistan, Vietnam, Yemen

Supplying 309 Stainless Steel Forged Fittings to Following Domestic Cities

Mumbai, Delhi, Kolkata, Chennai, Bengaluru, Hyderabad, Ahmadabad, Pune, Surat, Jaipur, Kanpur, Lucknow, Nagpur, Ghaziabad, Indore, Coimbatore, Kochi, Patna, Kozhikode, Bhopal, Thrissur, Vadodara, Agra, Malappuram, Thiruvananthapuram, Kannur, Ludhiana, Nashik, Vijayawada, Madurai, Varanasi, Meerut, Faridabad, Rajkot, Jamshedpur, Srinagar, Jabalpur, Asansol, Vasai Virar City, Allahabad, Dhanbad, Aurangabad, Amritsar, Jodhpur, Ranchi, Raipur, Kollam, Gwalior, Durg-Bhilainagar, Chandigarh, Tiruchirappalli, Kota

Industries & Applications Where Our 309 Stainless Steel Forged Fittings Are Used

Chemicals, Petrochemicals, Oil & Natural Gas Organization, Fats, Fertilizers, Sugar Mills & Distilleries, Cement Industries, Ship Builders, Paper Industries, Pumps, Automation, Paints, Steel Industries, etc.
